LITEGEAR
LiteMat Spectrum 2 Kit (Gen 1)
RGB Full Color
2000-11,000K CCT
CRI 95 / TLCI 95
1.800.000 Ft
Taxes included
Power
100W
Dimensions
21.1" x 21.1"
Weight
4.2 lbs
Control
DMX/CRMX
Product Description

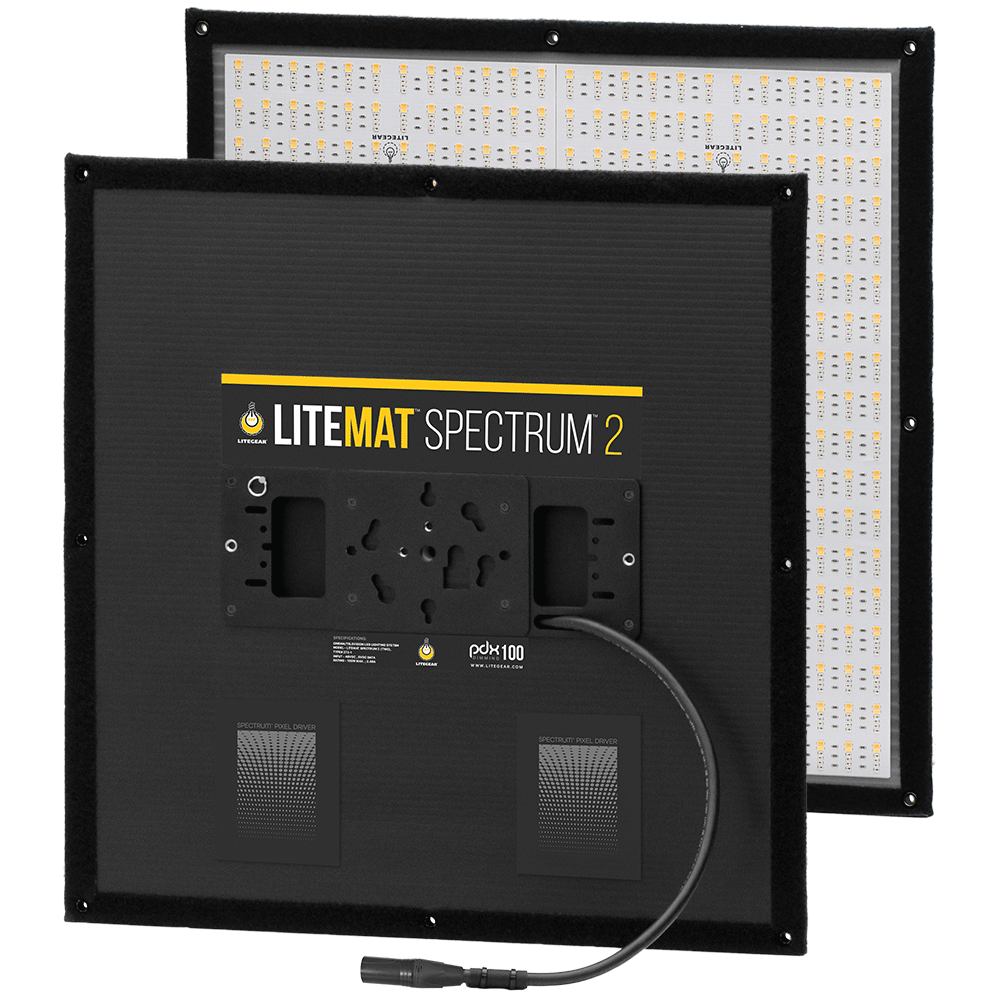

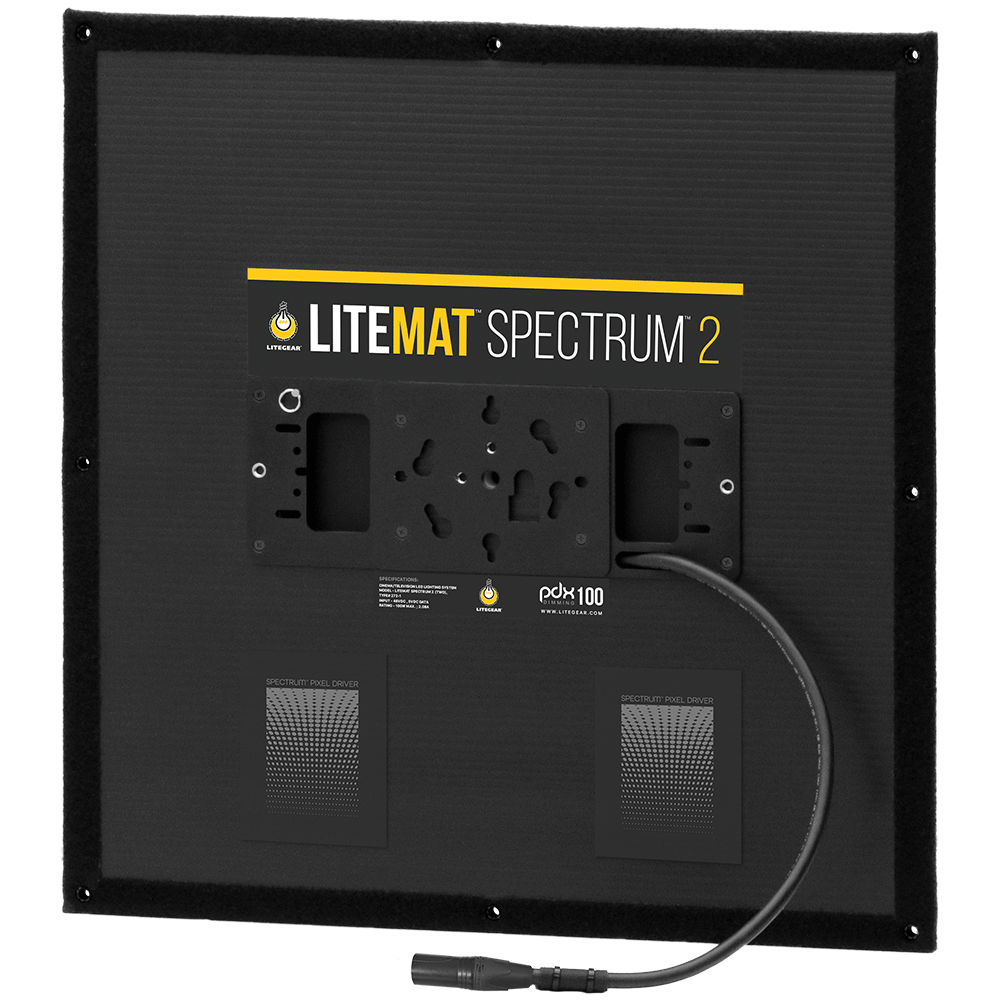

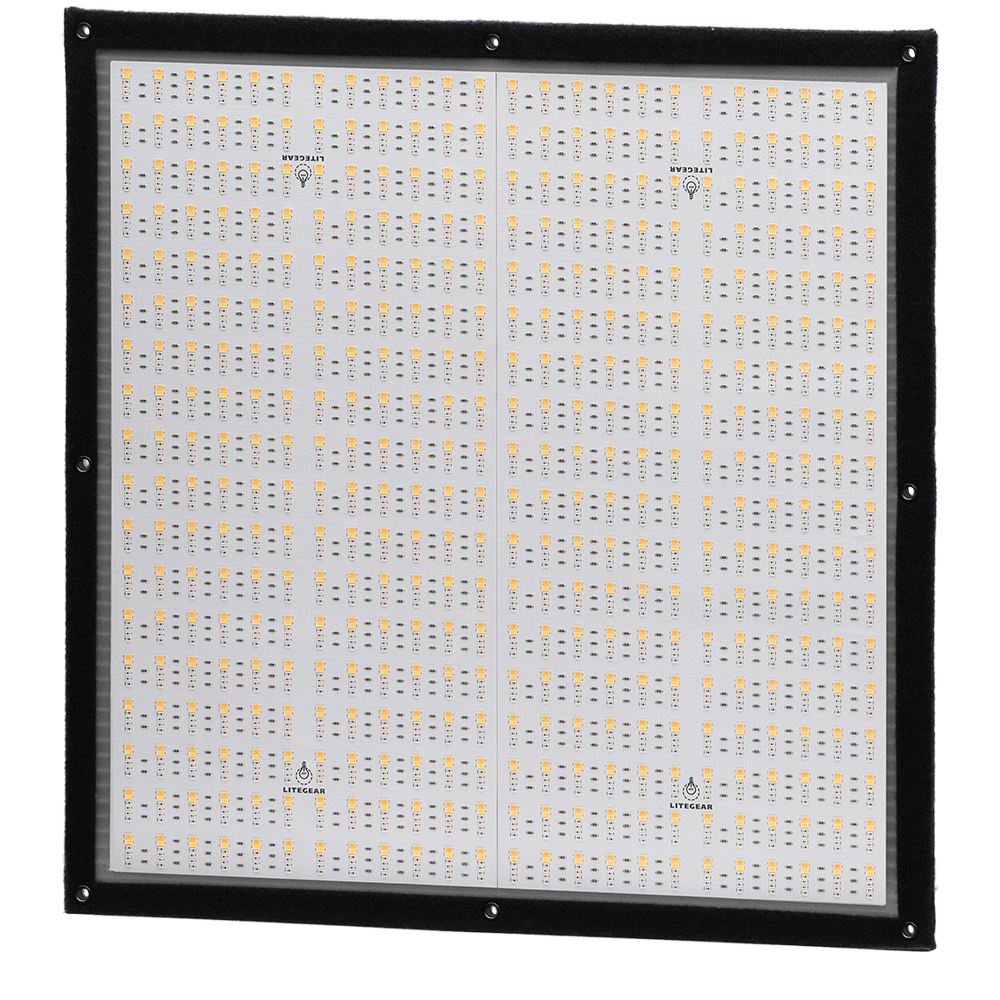

LiteMat Spectrum 2 is a lightweight LED lighting fixture system designed for cinema, television, and HD video. By providing evenly spaced, color-correct LEDs spread out over a large area, LiteMat creates soft light without requiring diffusion. The “softthrough- pixelization” method allows the unit to achieve bright levels while remaining 0.9 in. (23 mm) thick in size and 4.2 lb., (1.9 kg.) in weight.
Key Features
Full RGB Color Control
Complete color spectrum with hue and saturation adjustment
Wide CCT Range
2000K to 11,000K with plus/minus green adjustments
Two Mappable Pixels
Large-format pixels for creative control and effects
Superior Color Rendering
CRI 95 and TLCI 95 for accurate color reproduction
Ultra-Thin Design
Only 0.9" thick and 4.2 lbs for easy rigging
Advanced Control
DMX, RDM, CRMX, Art-Net, and sACN protocols
| Panel Size | 21.1" x 21.1" (535.4mm x 535.4mm) |
| Panel Depth | 1" (25.4mm) |
| Weight | 4.2 lbs (1.9 kg) |
| Power Consumption | 100W |
| Color Temperature Range | 2000K - 11,000K |
| Color Rendering Index | CRI 95 / TLCI 95 |
| Control Protocols | DMX, RDM, CRMX, Art-Net, sACN |
| Input Power | 48 VDC Power, 5 VDC Signal (PDX Connector) |
| Dimming | 0-100% smooth dimming |
| Pixels | 2 Large-Format Mappable Pixels |
| Color Modes | RGB, HSI, CCT with Tint Control |
| IP Rating | IP20 (Indoor Use) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Mounting | Baby Pin (Included kMount) |
LiteMat Spectrum 2 Head (Gen 1)
LiteDimmer Spectrum AC/DC 200
LiteMat 2 Full Diffuser
LiteMat 2 Half Diffuser
LiteMat 2 Quarter Diffuser
LiteMat 2 PolySkirt
PDX Cable, 25 ft
kMount Mounting Plate
LiteMat 2 KitBag
